Ancova

Introduction

ANOVA is a statistical method used to compare the means of three or more groups to determine if at least one group mean is significantly different from the others. Please see the ANOVA document for more information. ANCOVA is an extension to ANOVA.

ANCOVA (Analysis of Covariance) is a statistical method that compares the means of two or more groups while controlling for one or more continuous covariates. By adjusting for these covariates, ANCOVA helps to reduce potential confounding effects, allowing for a clearer assessment of the main treatment effects. It assumes linear relationships between covariates and the dependent variable, along with normality and homogeneity of variances.

We follow the example from link Analysis of Covariance

Data Summary

df_sas |> glimpse()

Rows: 30
Columns: 3
$ drug <fct> A, A, A, A, A, A, A, A, A, A, D, D, D, D, D, D, D, D, D, D, F, F,…
$ pre  <dbl> 11, 8, 5, 14, 19, 6, 10, 6, 11, 3, 6, 6, 7, 8, 18, 8, 19, 8, 5, 1…
$ post <dbl> 6, 0, 2, 8, 11, 4, 13, 1, 8, 0, 0, 2, 3, 1, 18, 4, 14, 9, 1, 9, 1…

df_sas |> summary()

 drug        pre             post
 A:10   Min.   : 3.00   Min.   : 0.00
 D:10   1st Qu.: 7.00   1st Qu.: 2.00
 F:10   Median :10.50   Median : 7.00
        Mean   :10.73   Mean   : 7.90
        3rd Qu.:13.75   3rd Qu.:12.75
        Max.   :21.00   Max.   :23.00

The Model

model_ancova <- lm(post ~ drug + pre, data = df_sas)

model_glance <- model_ancova |>
  glance()
model_tidy <- model_ancova |>
  tidy()
model_glance |>
  gt()

r.squared	adj.r.squared	sigma	statistic	p.value	df	logLik	AIC	BIC	deviance	df.residual	nobs
0.6762609	0.6389064	4.005778	18.10386	1.501369e-06	3	-82.05377	174.1075	181.1135	417.2026	26	30

model_tidy |>
  gt()

term	estimate	std.error	statistic	p.value
(Intercept)	-3.8808094	1.9862017	-1.9538849	6.155192e-02
drugD	0.1089713	1.7951351	0.0607037	9.520594e-01
drugF	3.4461383	1.8867806	1.8264647	7.928458e-02
pre	0.9871838	0.1644976	6.0012061	2.454330e-06

model_table <- model_ancova |>
  anova() |>
  tidy()

total_df <- sum(model_table$df)
total_sumsq <- sum(model_table$sumsq)

model_table |>
  add_row(term = "Total", df = total_df, sumsq = total_sumsq) |>
  gt()

term	df	sumsq	meansq	statistic	p.value
drug	2	293.6000	146.80000	9.148553	9.812371e-04
pre	1	577.8974	577.89740	36.014475	2.454330e-06
Residuals	26	417.2026	16.04625	NA	NA
Total	29	1288.7000	NA	NA	NA

Sums of Squares Tables

Type I

This can be calculated using, the base R {stats} package or the {rstatix} package. Both give the same result.

stats

stats::anova(model_ancova)

Analysis of Variance Table

Response: post
          Df Sum Sq Mean Sq F value    Pr(>F)
drug       2  293.6  146.80  9.1486 0.0009812 ***
pre        1  577.9  577.90 36.0145 2.454e-06 ***
Residuals 26  417.2   16.05
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

rstatix

df_sas |>
  anova_test(post ~ drug + pre, type = 1, detailed = TRUE) |>
  get_anova_table() |>
  gt()

Effect	DFn	DFd	SSn	SSd	F	p	p<.05	ges
drug	2	26	293.600	417.203	9.149	9.81e-04	*	0.413
pre	1	26	577.897	417.203	36.014	2.45e-06	*	0.581

Type II

This can be calculated using the {car} package or the {rstatix} package. Both give the same result.

car

car::Anova(model_ancova, type = "II")

Anova Table (Type II tests)

Response: post
          Sum Sq Df F value    Pr(>F)
drug       68.55  2  2.1361    0.1384
pre       577.90  1 36.0145 2.454e-06 ***
Residuals 417.20 26
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

rstatix

df_sas |>
  anova_test(post ~ drug + pre, type = 2, detailed = TRUE) |>
  get_anova_table() |>
  gt()

Effect	SSn	SSd	DFn	DFd	F	p	p<.05	ges
drug	68.554	417.203	2	26	2.136	1.38e-01		0.141
pre	577.897	417.203	1	26	36.014	2.45e-06	*	0.581

Type III

This can be calculated using the base R {stats} package, the {car} package or the {rstatix} package. All give the same result.

Note: Calculating type III sums of squares in R is a bit tricky, because the multi-way ANOVA model is over-paramerterised. So when running the linear model we need to select a design matrix that sums to zero. In R those options will be either "contr.sum" or "contr.poly"

# Drug design matrix
contr.sum(4) # Using 4 here as we have 4 levels of drug

  [,1] [,2] [,3]
1    1    0    0
2    0    1    0
3    0    0    1
4   -1   -1   -1

# Disease design matrix
contr.sum(3)

  [,1] [,2]
1    1    0
2    0    1
3   -1   -1

While not relevant for this example as the disease variable isn’t ordinal the polynomial design matrix would look like

contr.poly(3)

                .L         .Q
[1,] -7.071068e-01  0.4082483
[2,] -7.850462e-17 -0.8164966
[3,]  7.071068e-01  0.4082483

model_ancova <- lm(
  post ~ drug + pre, data = df_sas,
  contrasts = list(drug = "contr.sum")
)

stats

Using the base stats package, you can use the drop1() function which drops all possible single terms in a model. The scope term specifies how things can be dropped.

stats::drop1(model_ancova, scope = . ~ ., test = "F")

Single term deletions

Model:
post ~ drug + pre
       Df Sum of Sq    RSS     AIC F value    Pr(>F)
<none>              417.20  86.971
drug    2     68.55 485.76  87.535  2.1361    0.1384
pre     1    577.90 995.10 111.049 36.0145 2.454e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

car

car::Anova(model_ancova, type = "III")

Anova Table (Type III tests)

Response: post
            Sum Sq Df F value    Pr(>F)
(Intercept)  31.93  1  1.9898    0.1702
drug         68.55  2  2.1361    0.1384
pre         577.90  1 36.0145 2.454e-06 ***
Residuals   417.20 26
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

df_sas |>
  anova_test(post ~ drug + pre, type = 3, detailed = TRUE) |>
  get_anova_table() |>
  gt()

Effect	SSn	SSd	DFn	DFd	F	p	p<.05	ges
(Intercept)	31.929	417.203	1	26	1.990	1.70e-01		0.071
drug	68.554	417.203	2	26	2.136	1.38e-01		0.141
pre	577.897	417.203	1	26	36.014	2.45e-06	*	0.581

Least Squares Means

model_ancova |>
  emmeans::lsmeans("drug") |>
  emmeans::pwpm(pvals = TRUE, means = TRUE)

        A       D       F
A [ 6.71]  0.9980  0.1809
D  -0.109 [ 6.82]  0.1893
F  -3.446  -3.337 [10.16]

Row and column labels: drug
Upper triangle: P values   adjust = "tukey"
Diagonal: [Estimates] (lsmean)
Lower triangle: Comparisons (estimate)   earlier vs. later

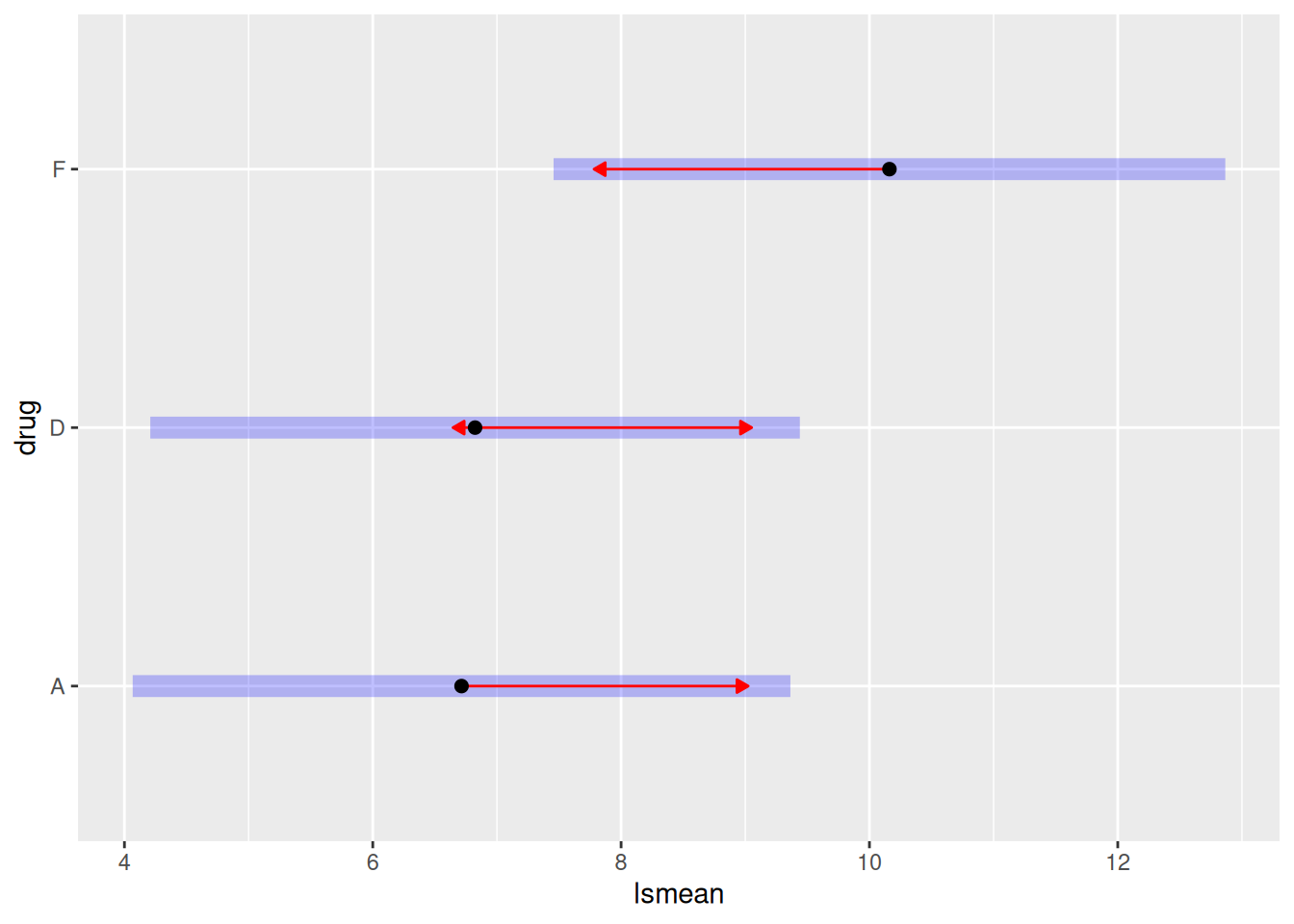

model_ancova |>
  emmeans::lsmeans("drug") |>
  plot(comparisons = TRUE)

sasLM Package

The following code performs an ANCOVA analysis using the sasLM package. This package was written specifically to replicate SAS statistics. The console output is also organized in a manner that is similar to SAS.

library(sasLM)

sasLM::GLM(post ~ drug + pre, df_sas, BETA = TRUE, EMEAN = TRUE)

$ANOVA
Response : post
                Df Sum Sq Mean Sq F value    Pr(>F)
MODEL            3  871.5 290.499  18.104 1.501e-06 ***
RESIDUALS       26  417.2  16.046
CORRECTED TOTAL 29 1288.7
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

$Fitness
 Root MSE post Mean Coef Var  R-square  Adj R-sq
 4.005778       7.9 50.70604 0.6762609 0.6389064

$`Type I`
     Df Sum Sq Mean Sq F value    Pr(>F)
drug  2  293.6   146.8  9.1486 0.0009812 ***
pre   1  577.9   577.9 36.0145 2.454e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

$`Type II`
     Df Sum Sq Mean Sq F value    Pr(>F)
drug  2  68.55   34.28  2.1361    0.1384
pre   1 577.90  577.90 36.0145 2.454e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

$`Type III`
     Df Sum Sq Mean Sq F value    Pr(>F)
drug  2  68.55   34.28  2.1361    0.1384
pre   1 577.90  577.90 36.0145 2.454e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

$Parameter
            Estimate Estimable Std. Error Df t value  Pr(>|t|)
(Intercept)  -0.4347         0     2.4714 26 -0.1759   0.86175
drugA        -3.4461         0     1.8868 26 -1.8265   0.07928 .
drugD        -3.3372         0     1.8539 26 -1.8001   0.08346 .
drugF         0.0000         0     0.0000 26
pre           0.9872         1     0.1645 26  6.0012 2.454e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

$`Expected Mean`
               LSmean  LowerCL   UpperCL        SE Df
(Intercept)  7.900000 6.396685  9.403315 0.7313516 26
drugA        6.714963 4.066426  9.363501 1.2884943 26
drugD        6.823935 4.208337  9.439532 1.2724690 26
drugF       10.161102 7.456182 12.866021 1.3159234 26
pre          7.900000 6.396685  9.403315 0.7313516 26

Note that the LSMEANS statistics are produced using the EMEAN = TRUE option. The BETA = TRUE option is equivalent to the SOLUTION option in SAS. See the sasLM documentation for additional information.
